SMO 254 Sheet and Plates

Located in Dubai, UAE, Al Shakru Sheets and Plates has earned a strong reputation as a trustworthy manufacturer and supplier of premium stainless steel products, such as SMO 254 Sheets and Plates . These sheets and plates are known for their exceptional corrosion resistance, remarkable strength, and enduring durability. They are carefully engineered to satisfy the rigorous requirements of chemical, marine, and industrial applications. Al Shakru Sheets and Plates is committed to delivering consistent quality and reliable performance, guaranteeing that their products can withstand even the harshest environments. With a firm emphasis on customer satisfaction, technical support, and timely delivery, the company has established itself as a leading supplier of high-performance SMO 254 Sheets and Plates in UAE.

SMO 254 Sheets Dealer in Abu Dhabi, SMO 254 Plates Supplier in Abu Dhabi, UNS S31254 Sheets in Al Ain, Plates Size Chart, UNS S31254 Sheet Price in Ajman, DIN 1.4547 Plates Supplier in UAE, DIN 1.4547 Sheet Stockist in Jebel Ali, SMO 254 Sheets and Plates Exporter in UAE, SMO 254 Sheet Stockist in Dubai, UNS S31254 Plates Supplier in Jebel Ali

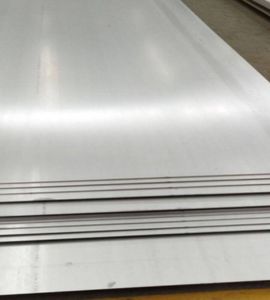

SMO 254 Cold Rolled Plates

SMO 254 Hot Rolled Plates

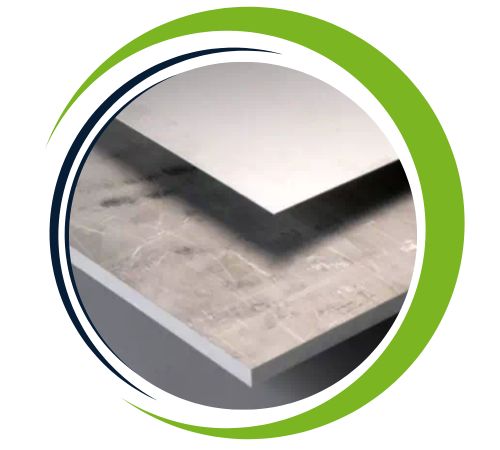

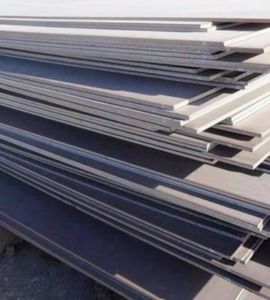

SMO 254 Clad Sheets & Plate

SMO 254 Sheets and Plates are made from a high-alloy austenitic stainless steel that includes roughly 20% chromium, 18% nickel, 6% molybdenum, and small quantities of nitrogen. This unique composition delivers outstanding resistance to pitting, crevice corrosion, and stress corrosion cracking. On top of that, the alloy features excellent tensile and yield strength, together with solid toughness and ductility. SMO 254 Sheets and Plates retain their mechanical stability even in demanding chemical and marine environments, which makes them ideal for structural and industrial uses that call for both strength and impressive corrosion resistance.

SMO 254 Sheet and Plates Specification

Specifications	ASTM A240 / ASME SA240
Thickness	4mm-100mm
Width	1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length	2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Surface	2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hairline, sand blast, Brush, etching, etc
Finish	Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)

SMO 254 Sheet and Plates Chemical Composition

Grade	Ni	C	Mo	Mn	Si	Fe	Cu	S	P	Cr
SMO 254	17.5 – 18.5	0.02 max	6 – 6.5	1 max	0.8 max	–	0.5 – 1	0.01 max	0.03 max	19.5 – 20.5

SMO 254 Sheet and Plates Mechanical Properties

0.2% Proof Stress (N/mm2 ) [ksi] minimum	300 [43.5]
Tensile Strength (N/mm2) [ksi] minimum	650
Elongation (%) minimum	35
Hardness (HBN)	270 max
Reduction of Cross Section Area (%)	50

SMO 254 Sheets Price in Ajman, SMO 254 Hot Rolled Weight Chart, UNS S31254 Cold Rolled Supplier in UAE, Stockist of SS UNS S31254 Cold Rolled Sheets in Jebel Ali, DIN 1.4547 Perforated Sheet Supplier in UAE, DIN 1.4547 Perforated Plates Price List in Dubai, SMO 254 Perforated Plates Supplier in Jebel Ali,SMO 254 Chequered Plates Exporter in Abu Dhabi, UNS S31254 Polished Plates Exporter in UAE, UNS S31254 Perforated Plates Exporter in Al Ain, DIN 1.4547 Sheet and Plate in Ajman

If You Are Looking To Buy High Quality Piping Products ?

We supply products accompanied by both mill test certificates and third-party test certificates, guaranteeing the highest standards of quality and compliance.

Largest SMO 254 Sheets and Plates Manufacturer and Exporter in Dubai, UAE

Al Shakru Sheets and Plates, located in Dubai, UAE, is a top supplier and stockist of premium metal products, such as Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all provided with outstanding service and customized to fulfill our customers specific needs. With an emphasis on supplying superior products, we serve a broad array of industries, offering dependable solutions for varied applications. Our large inventory features Recognized for our distinctive finishing methods and dedication to quality. We are committed to guaranteeing customer satisfaction through reliable service and first-rate products.

SMO 254 Chequered Sheets Distributor in UAE, UNS S31254 Perforated Plates Supplier in Dubai, DIN 1.4547 Perforated Sheet Weight Chart, SMO 254 Plate Exporter in Jebel Ali, SMO 254 Polished Sheets Manufacturer in Abu Dhabi, UNS S31254 Shim Sheet and Plate Price List in UAE, UNS S31254 Chequered Plates Sizes in mm, SS DIN 1.4547 Hot Rolled Plate Distributor in Al Ain, SMO 254 Sheets and Plates Ajman

DIN 1.4547 Sheets and Platesoffer outstanding resistance to corrosion, especially against pitting, crevice corrosion, and stress corrosion cracking in chloride environments. Thanks to its high molybdenum and nitrogen content, it delivers excellent performance in demanding chemical and marine settings. The alloy offers exceptional strength, durability, and great weldability, which makes it perfect for high-stress applications. Its ability to withstand elevated temperatures and aggressive environments guarantees lasting performance without deterioration. SMO 254 also has strong resistance to oxidation, allowing it to preserve its integrity even under extreme conditions, which makes it a favored option for sectors such as chemical processing, petrochemical, and marine.

Physical Properties of SMO 254 Sheets and Plates

Density (Kg.m-1)	8000
Magnetic Permeability	<1.05
Young’s Modulus (N/mm2)	200 x 103
Specific Heat, 20°C (J.Kg-1.°K-1)	500
Specific Electrical Resistance, 20°C (µO.m)	0.85
Thermal conductivity, 20°C	13.5

Types of SMO 254 Sheet and Plates

SMO 254 Plates Manufacturer in Abu Dhabi, SMO 254 Plates & Sheets Al Ain, DIN 1.4547 Mirror Finish Plates Supplier in Dubai, DIN 1.4547 Polished Plates Exporter in Jebel Ali, UNS S31254 Chequered Plates Price List in UAE, UNS S31254 Cold Rolled Plate Distributor in Al Ain, SMO 254 Mirror Finished Plates and Sheets Supplier in Abu Dhabi, DIN 1.4547 Sheet and Plate Distributor in UAE, UNS S31254 Perforated Plate Sizes in mm

Are Custom Sizes Available for SMO 254 Sheet and Plates?

Yes,we offer custom sizes for SMO 254 Sheet and Plates to fit particular project needs. Our team at Al Shakru Sheets and Plates is committed to delivering customized solutions for all your requirements. For further information, reach out to us at sales@alshakruplates.ae.

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

SMO 254 Sheet and Plates Equivalent Grade

STANDARD	UNS	WERKSTOFF NR.	AFNOR	EN	JIS	SIS	GOST
SMO 254	S31254	1.4547	Z1 CNDU 20.18.06Az	X1CrNiMoCuN20-18-7	–	2378	–

Dimensions of SMO 254 Sheets and Plates

Surface finish	Thickness (mm)	Width (mm)
2B – Cold rolled, heat treated, pickled, skin passed	0.25–8.0	max. 2032
2D – Cold rolled, heat treated, pickled	0.4–6.35	max. 1524
2E – Cold rolled, heat treated, mechanically descaled	0.4–8.0	max. 2032
2R – Cold rolled, bright annealed	0.25–3.5	max. 1524
2H – Work hardened	0.4–6.35	max. 1524
Polished, brushed	0.5–4.0	max. 1524

Application Industry of SMO 254 Sheet and Plates

These SMO 254 Sheets and Plates are widely used in chemical processing, desalination plants, marine engineering, and the pharmaceutical and food industries, where toughness and corrosion resistance are essential. They are perfectly suited for building heat exchangers, storage tanks, piping systems, evaporators, and cladding that come into contact with saline or corrosive surroundings. Their strong mechanical properties and resistance to pitting and crevice corrosion ensure dependable performance over the long term. Al Shakru Sheets and Plates supplies these sheets and plates in a range of sizes and finishes, providing precision-engineered, sturdy solutions for even the most challenging industrial requirements.
