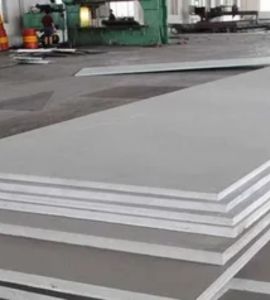

Al Shakru Sheets and Plates, a premier manufacturer and supplier based in Dubai, UAE, has established a strong reputation for providing high-quality metal products that comply with international industrial standards. Among their most notable products, the Inconel 690 Sheets and Plates, is renowned for its exceptional resistance to heat, oxidation, and corrosion. Manufactured with precision and advanced metallurgical methods, these sheets and plates are ideally suited for settings that face elevated temperatures and harsh chemicals. Al Shakru Sheets and Plates ensures that each Inconel 690 product satisfies stringent quality benchmarks, making it a dependable option for sectors such as power generation, petrochemical, and chemical processing worldwide.
Inconel 690 Sheets and Plates are made up mainly of nickel (58–63%), chromium (27–31%), and iron (7–11%), together with precisely regulated levels of silicon, manganese, and carbon to enhance stability. They deliver remarkable mechanical strength, featuring a tensile strength of around 655 MPa and a yield strength of about 310 MPa. This material performs exceptionally well against both oxidizing and reducing agents, preserving its mechanical soundness even under high temperatures. Its precisely proportioned chemical makeup guarantees outstanding metallurgical stability, weldability, and longevity when subjected to severe thermal and corrosive environments.
| Standards : | ASTM B168 / ASME SB168 |
| Dimensions : | ASTM, ASME, and API |
| Sheets Thickness : | Range from .008″ to .0125″ |
| Shims Thickness : | Range from .01″ to .0125″ |
| Plates Thickness : | Ranges from .0125″ to 5.00″ |
| Sheets/Plates Width : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheets/Plates Length : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Tempers : | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Value Added Service : | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Element | Tensile Rm | Tensile Rm | R.p. 0.2% Yield | R.p. 0.2% Yield | Elongation (2” or 4D gl) |
| Inconel 690 | 86 ksi (min) | 590 MPa (min) | 35 ksi (min) | 240 MPa (min) | ≥30 % (min) |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 690 | 0.05 max | 0.5 max | 0.5 max | 0.015 max | 0.5 max | 7 – 11 | Remainder | 27 – 31 |
| Density | Electrical Resistivity | Modulus Elasticity | Thermal Expansion | Thermal Conductivity | Specific Heat (0-100°C) |
| 8.2 g/cm3 | 1.26 μohm/cm | 211 GPa | 14 mm/m/°C | 13.5 W.m -1.°K-1 | 450 J.kg-1.°K-1 |
We supply products accompanied by both mill test certificates and third-party test certificates, guaranteeing the highest standards of quality and compliance.
Al Shakru Sheets and Plates, headquartered in Dubai, UAE, is a top supplier and stockist of premium metal products, such as Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all provided with outstanding service and customized to fulfill our customers specific needs. Committed to delivering excellent products, we serve a broad spectrum of industries, offering dependable solutions for varied applications. Our large inventory features Recognized for our distinctive finishing methods and dedication to quality. We are devoted to guaranteeing customer satisfaction through reliable service and first-rate products.
Inconel 690 Sheet and Plateprovides many benefits, making it well-suited for demanding applications. Its exceptional corrosion resistance, particularly in oxidizing and high-temperature settings, guarantees lasting performance under severe conditions. The elevated chromium content delivers outstanding resistance to stress corrosion cracking, especially in caustic solutions. Offering superior mechanical strength and stability at high temperatures, it is ideal for heat exchangers, nuclear reactors, and chemical processing equipment. Furthermore, its excellent weldability and formability enable versatile fabrication, ensuring dependability and cost-effectiveness across a range of industrial applications.
Yes,we provide custom sizes for Inconel 690 Sheets and Plates to fit particular project needs. The team at Al Shakru Sheets and Plates is committed to delivering tailored solutions for all your requirements. To learn more, reach out to us at sales@alshakruplates.ae.
| Tolerance over and under nominal thickness t (mm) | ||||||||||
| Width w (mm) | 2.54.56.08.010.012.516.020.025.030 | |||||||||
| w < 1200 | 0.20 | 0.23 | 0.30 | 0.32 | 0.35 | 0.80 | 0.80 | 0.80 | 1.0 | 1.4 |
| 1200< w <1500 | 0.20 | 0.25 | 0.30 | 0.35 | 0.38 | 0.80 | 0.80 | 0.90 | 1.0 | 1.4 |
| 1500< w <1800 | 0.20 | 0.28 | 0.32 | 0.38 | 0.40 | 0.80 | 0.80 | 0.90 | 1.1 | 1.5 |
| 1800< w <2100 | 0.20 | 0.30 | 0.36 | 0.40 | 0.45 | 0.80 | 0.80 | 0.90 | 1.1 | 1.5 |
| 2100< w <2400 | 0.80 | 0.80 | 0.80 | 0.80 | 0.80 | 0.90 | 1.0 | 1.1 | 1.5 | |
| 2400< w <2700 | 0.80 | 0.80 | 0.80 | 0.80 | 0.90 | 1.0 | 1.1 | 1.3 | 1.7 | |
| 2700< w <3000 | 0.80 | 0.90 | 1.0 | 1.0 | 1.0 | 1.1 | 1.3 | 1.4 | 1.8 | |
These Inconel 690 Sheets and Plates are widely used in applications demanding the highest level of corrosion and heat resistance. You’ll typically see them in nuclear power plants, steam generators, and heat exchangers, along with chemical processing and marine environments. On top of that, these plates serve in furnace components, gas turbines, and superheater tubes, where stability and oxidation resistance are essential. Their exceptional mechanical strength and resistance to sulfur and chloride environments make them ideal for tough operating conditions, delivering durable performance, safety, and reliability in critical industrial systems.
