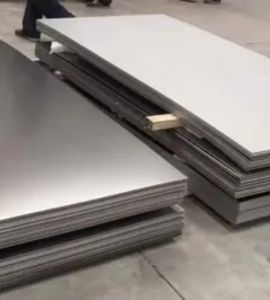

Al Shakru Sheets and Plates, a premier manufacturer and supplier based in Dubai, UAE, focuses on high-quality Nimonic Sheets and Plates designed for exceptional performance in high-temperature and corrosive environments. Recognized for their impressive strength, creep resistance, and longevity, these nickel-based superalloy sheets and plates are produced to meet stringent international standards. Al Shakru Sheets and Plates uses advanced manufacturing techniques combined with comprehensive quality control to ensure accuracy, dependability, and uniformity. Serving industries such as aerospace, power generation, and chemical processing, the company delivers durable and high-performance Nimonic Sheets and Plates that satisfy the demanding requirements of modern engineering and industrial applications.
Nimonic Sheets and Plates are composed mainly of nickel (about 77%), chromium (roughly 19%), cobalt (around 1.5%), titanium (about 0.8%), and aluminum (nearly 0.6%), a combination that delivers outstanding mechanical properties. They offer a tensile strength of roughly 850–900 MPa along with remarkable creep and fatigue resistance at high temperatures of up to 750°C. On top of this, Nimonic alloys perform superbly in terms of oxidation and corrosion resistance, holding their form and structural integrity even when subjected to severe thermal and mechanical stress. Thanks to these qualities, Nimonic Sheets and Plates are ideal for demanding, high-temperature engineering applications.
| Standards : | BS HR 203, DIN 17750, AECMA PrEN2293, AECMA PrEN2302, AECMA PrEN2411, ISO 6208 |
| Dimensions : | ASTM, ASME, and API |
| Sheets Thickness : | Range from .008″ to .0125″ |
| Shims Thickness : | Range from .01″ to .0125″ |
| Plates Thickness : | Ranges from .0125″ to 5.00″ |
| Sheets/Plates Width : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheets/Plates Length : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Tempers : | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Value Added Service : | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Plate, Sheet and Strip : | BS HR 203, DIN 17750, AECMA PrEN2293, AECMA PrEN2302, AECMA PrEN2411, ISO 6208 |
| STANDARD | WERKSTOFF NR. | UNS |
| Nimonic | 2.4951 / 2.4630 | N06075 |
We supply products accompanied by both mill test certificates and third-party test certificates, guaranteeing the highest standards of quality and compliance.
Al Shakru Sheets and Plates, located in Dubai, UAE, is a top supplier and stockist of premium metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all provided with outstanding service and customized to fulfill our customers specific needs. With an emphasis on supplying superior products, we serve a broad spectrum of industries, offering dependable solutions for varied applications. Our large inventory features Recognized for our distinctive finishing methods and dedication to quality. We are committed to guaranteeing customer satisfaction through reliable service and first-rate products.
Nimonic sheets and platesprovide numerous benefits, making them well-suited for high-performance applications. They deliver outstanding resistance to elevated temperatures, oxidation, and corrosion, guaranteeing lasting durability in severe environments. Their high tensile strength and creep resistance make them appropriate for challenging industries such as aerospace and power generation. Moreover, Nimonic alloys retain their mechanical properties even at high temperatures, delivering superb fatigue resistance. These materials are also highly weldable and formable, permitting straightforward fabrication into intricate shapes, which boosts their versatility across a wide range of applications.
Yes,we provide custom sizes for Nimonic Sheets and Plates to suit particular project requirements. Our team at Al Shakru Sheets and Plates is committed to delivering customized solutions for all your needs. For more information, reach out to us at sales@alshakruplates.ae.
Nimonic Sheets and Plates are widely used across industries requiring exceptional strength, resistance to high temperatures, and long-lasting performance. They are frequently applied in aerospace turbine components, jet engine parts, and gas turbines . Within the power generation industry , they function in boiler components, heat exchangers, and high-temperature structural elements . Thanks to their outstanding creep resistance and thermal stability, they are also well-suited for chemical processing equipment, furnace components, and aerospace structural parts . Nimonic Sheets and Plates ensure dependable performance under extreme conditions, delivering the strength and durability required for demanding applications.
