Al Shakru Sheets and Plates, a leading manufacturer and supplier based in Dubai, UAE, focuses on high-quality Monel Sheets and Plates engineered to deliver exceptional corrosion resistance, strength, and durability. These nickel-copper alloys are produced to satisfy strict international standards, guaranteeing they provide superb mechanical properties and reliability even under the harshest conditions. Al Shakru Sheets and Plates prides itself on maintaining accurate thickness, a uniform surface finish, and superior quality control to supply products you can rely on. They serve a range of industries, such as chemical processing, marine, aerospace, and oil and gas, delivering Monel Sheets and Plates that are ideal for applications where resistance to acids, alkalis, seawater, and elevated temperatures is essential for long-lasting performance.
Monel Sheets and Plates are composed primarily of nickel (roughly 63–70%) and copper (approximately 28–34%), together with minor quantities of iron, manganese, and carbon. They deliver notable tensile strength in the 550–700 MPa range, yield strength from 200–400 MPa, and outstanding ductility. Monel alloys are recognized for their superior resistance to corrosion from acids, alkalis, and seawater, along with their strong thermal and mechanical stability. This distinctive combination of toughness, formability, and durability makes Monel Sheets and Plates ideal for structural, chemical, and high-performance industrial uses where lasting reliability is essential.
Specifications :ASTM B127, ASME SB127, AMS 4544, QQ-N-281, DIN 17750, BS 3072NA1, BS 3076NA13
Standards :ASTM, ASME and API
Size :1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm
Thickness :0.1mm to 12 mm Thk
Length :12500 mm

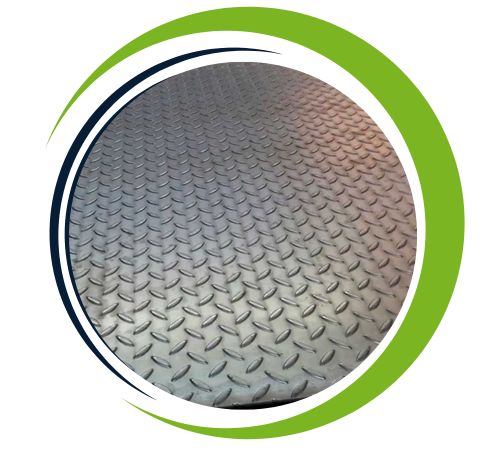

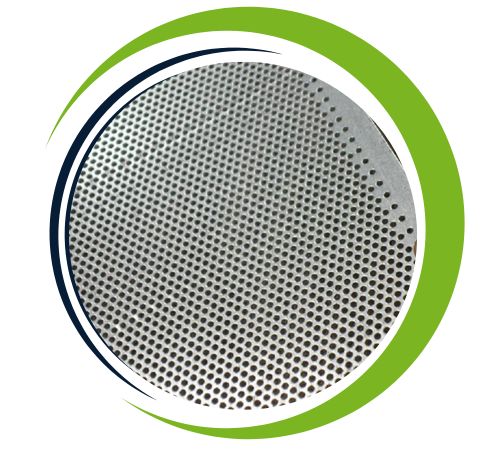

Form :Coils, Foils, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) & Angle, Channel, Tray Etc.
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Plate, Sheet, and Strip : BS3072NA18 (Sheet and Plate), BS3073NA18 (Strip), QQ-N-286 (Plate, Sheet and Strip), DIN 17750 (Plate, Sheet and Strip), ISO 6208 (Plate, Sheet and Strip)
Grade : Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500)
| Sizes in Inches | Sizes in mm |
|---|---|
| .125″ | 3.18mm |
| .134″ | 3.40mm |
| .156″ | 3.96mm |
| .187″ | 4.75mm |
| .250″ | 6.35mm |
| .312″ | 7.92mm |
| .375″ | 9.53mm |
| .500″ | 12.7mm |
| .625″ | 15.9mm |
| .750″ | 19.1mm |
| .875″ | 22.2mm |
| 1″ | 25.4mm |
| 1.125″ | 28.6mm |
| 1.250″ | 31.8mm |
| 1.500″ | 38.1mm |
| 1.750″ | 44.5mm |
| 2″ | 50.8mm |
| 2.500″ | 63.5mm |
| 3″ | 76.2mm |
| Surface finish | Thickness (mm) | Width (mm) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed | 0.25–8.0 | max. 2032 |
| 2D – Cold rolled, heat treated, pickled | 0.4–6.35 | max. 1524 |
| 2E – Cold rolled, heat treated, mechanically descaled | 0.4–8.0 | max. 2032 |
| 2R – Cold rolled, bright annealed | 0.25–3.5 | max. 1524 |
| 2H – Work hardened | 0.4–6.35 | max. 1524 |

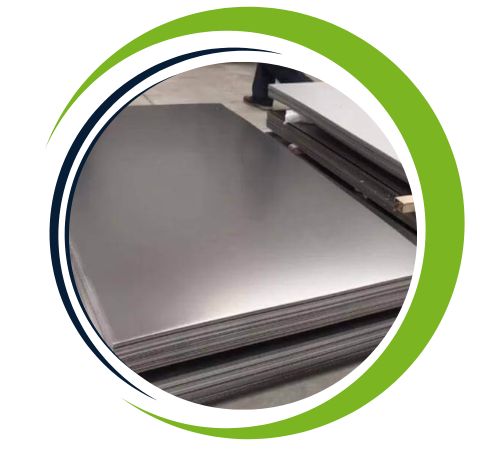

| Polished, brushed | 0.5–4.0 | max. 1524 |
| Stocked Sizes | |
|---|---|
| Size (in inches) | Size (in mm) |
| .125″ | 3.18mm |
| .134″ | 3.40mm |
| .156″ | 3.96mm |
| .187″ | 4.75mm |
| .250″ | 6.35mm |
| .312″ | 7.92mm |
| .375″ | 9.53mm |
| .500″ | 12.7mm |
| .601″ | 15.9mm |
| .750″ | 19.1mm |
| .875″ | 22.2mm |
| 1″ | 25.4mm |
| 1.125″ | 28.6mm |
| 1.250″ | 31.8mm |
| 1.500″ | 38.1mm |
| 1.750″ | 44.5mm |
| 2″ | 50.8mm |
| 2.500″ | 63.5mm |
| 3″ | 76.2mm |
We supply products accompanied by both mill test certificates and third-party test certificates, guaranteeing the highest levels of quality and compliance.
Monel Sheets and Plates deliver a wide range of benefits, such as outstanding corrosion resistance, particularly in demanding environments like seawater, acidic, and alkaline solutions. They feature high strength, superb weldability, and solid formability, which makes them well-suited for intricate applications. Monel is resistant to stress corrosion cracking and oxidation, guaranteeing durability and dependability over time. The alloy additionally demonstrates remarkable resistance to high-temperature conditions, making it perfect for marine, aerospace, and chemical processing industries. Thanks to these exceptional properties, Monel Sheets and Plates provide lasting performance, cutting down maintenance expenses and improving the longevity of components and structures.
| Surface finish | Gauge (in) | Width (in) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed | 10–24 | max. 72* |
| 2D – Cold rolled, heat treated, pickled | 12–24 | max. 60 |
| BA Mexinox only | 18–28 | max. 48 |
| Polished (not brushed) | 11–24 | max. 60 |
| Temper rolled Mexinox only | 13–29 | max. 48 |
Monel Sheets and Plates are widely applied in industries that require exceptional corrosion resistance and mechanical performance. They see frequent use in chemical processing equipment, heat exchangers, and storage tanks . Within the marine industry , they appear in pumps, valves, propeller shafts, and seawater fittings . Their impressive resistance to acids, alkalis, and high-temperature oxidation likewise makes them well-suited for aerospace components, oil and gas equipment, and industrial machinery . Monel Sheets and Plates deliver lasting durability, strength, and dimensional stability, ensuring dependable performance in demanding industrial environments.
