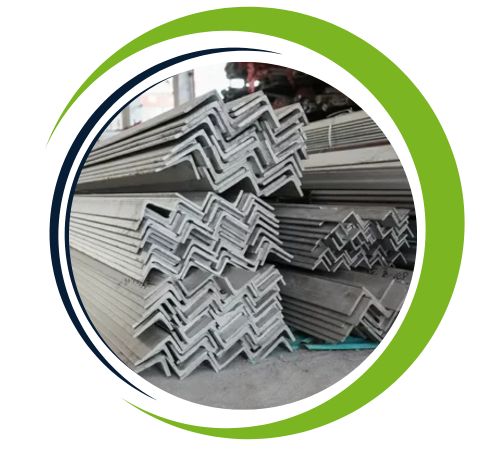

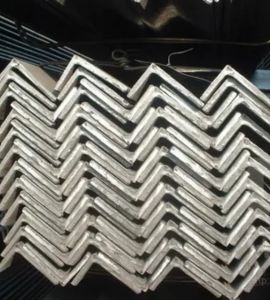

Al Shakru Sheets and Plates, a well-regarded manufacturer and supplier based in Dubai, UAE, focuses on premium Incoloy 825 Angles . These angles are known for their exceptional corrosion resistance, remarkable strength, and durability, which makes them ideal for demanding industrial and chemical environments. Engineered to withstand both oxidizing and reducing conditions, they retain their structural integrity and performance even under severe stress and temperature swings. Al Shakru Sheets and Plates prioritizes precision manufacturing, guaranteeing uniform dimensions and an excellent surface finish while adhering to international quality benchmarks. With an emphasis on dependability and durability, Incoloy 825 Angles from Al Shakru Sheets and Plates are the preferred option for essential applications in the chemical processing, petrochemical, marine, and power generation industries that require high-performance materials.
Incoloy 825 Angles are produced from nickel-iron-chromium alloys, which contain Nickel (38–46%) , Iron (≤38%) , Chromium (19–23%) , Molybdenum (2.5–3.5%) , Copper (1–2.5%) , together with minor quantities of Titanium and Carbon . This material offers outstanding mechanical properties, featuring a tensile strength of 550–690 MPa , a yield strength of 275–345 MPa , and good elongation, which delivers exceptional ductility, toughness, and resistance to corrosion and high temperatures.
Specifications :ASTM B425 / ASME SB425
Angle Size Range :20 x 20 mm to 100 x 100 mm
Angles Thickness :3 to 12 mm (varies with size)
Channel Size Range :Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness :5 to 6 mm (varies with size)
Length :3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
| Incoloy 825 | 2.4858 | N08825 | NCF 825 | NA 16 | ЭП703 | NFE30C20DUM | NiCr21Mo | XH38BT |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Incoloy 825 | 8.14 g/cm3 | 1400 °C (2550 °F) | Psi – 80,000 , MPa – 550 | Psi – 32,000 , MPa – 220 | 30 % |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| Incoloy 825 | 0.05 max | 1.00 max | 0.5 max | 0.03 max | 1.50 – 3.00 | 22.00 min | 38.00 – 46.00 | 19.50 – 23.50 | 0.02 max | 0.06 – 1.20 |
We supply products accompanied by both mill test certificates and third-party test certificates, guaranteeing the highest standards of quality and compliance.
Al Shakru Sheets and Plates based in Dubai, UAE, is a premier supplier and stockist of premium metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all provided with outstanding service and customized to fulfill our customers specific needs. With an emphasis on delivering top-tier products, we serve a broad spectrum of industries, offering dependable solutions for varied applications. Our comprehensive inventory features Recognized for our distinctive finishing methods and dedication to quality. We are committed to guaranteeing customer satisfaction through reliable service and first-rate products.
Incoloy 825 anglesoffer numerous benefits, making them well-suited for demanding environments. They deliver exceptional corrosion resistance, including against sulfuric acid, phosphoric acid, and seawater, guaranteeing longevity in chemical and marine uses. The alloy’s high strength and superb oxidation resistance at high temperatures make it appropriate for high-stress situations. Furthermore, Incoloy 825 shows good weldability and formability, permitting ease of fabrication. Its resistance to stress corrosion cracking, combined with improved mechanical properties, guarantees dependable performance and durability, making it a favored option for industries such as chemical processing and power generation.
| Sizes (all Dimensions in milimeter) | Approx Weight SS Angle Bar (kilogram/meter) | Incoloy Angle Bar Sizes (all Dimensions in milimeter) | Approx Weight SS 316 Angle Bar (kilogram/meter) |
|---|---|---|---|
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
| Size in Inches | Est. Weight per Ft. Lbs. | Est. Weight per 20′ Bar |
|---|---|---|
| 3/4 x 3/4 x 1/8 | 0.59 | 11.80 |
| 1 x 1 x 1/8 | 0.80 | 16.00 |
| 1 x 1 x 3/16 | 1.16 | 23.20 |
| 1 x 1 x 1/4 | 1.49 | 29.80 |
| 1-1/4 x 1-1/4 x 1/8 | 1.01 | 20.20 |
| 1-1/4 x 1-1/4 x 3/16 | 1.48 | 29.60 |
| 1-1/4 x 1-1/4 x 1/4 | 1.92 | 38.40 |
| 1-1/2 x 1-1/2 x 1/8 | 1.23 | 24.60 |
| 1-1/2 x 1-1/2 x 3/16 | 1.80 | 36.00 |
| 1-1/2 x 1-1/2 x 1/4 | 2.34 | 46.80 |
| 2 x 2 x 1/8 | 1.65 | 33.00 |
| 2 x 2 x 3/16 | 2.44 | 48.80 |
| 2 x 2 x 1/4 | 3.19 | 63.80 |
| 2 x 2 x 3/8 | 4.70 | 94.00 |
| 2-1/2 x 2-1/2 x 3/16 | 3.07 | 61.40 |
| 2-1/2 x 2-1/2 x 1/4 | 4.10 | 82.00 |
| 3 x 3 x 1/4 | 4.90 | 98.00 |
| 4 x 4 x 1/4 | 6.60 | 132.00 |
| 4 x 4 x 3/8 | 9.80 | 196.00 |
Yes,we provide custom sizes for Incoloy 825 Angle to fit particular project requirements. Our team at Al Shakru Sheets and Plates is committed to delivering customized solutions for all your needs. To learn more, reach out to us at sales@alshakruplates.ae.
Incoloy 825 Angles are widely applied across industries that demand outstanding corrosion resistance and dependable mechanical performance. Typical applications include chemical processing equipment, heat exchangers, reactor vessels, marine structures, and pollution control systems . They also serve the power generation, petrochemical, and offshore sectors , where structural parts must withstand aggressive chemical contact and severe operating conditions. The superb formability, weldability, and durability of Incoloy 825 Angles from Al Shakru Sheets and Plates make them ideal for building essential structural components and high-performance assemblies in tough industrial and chemical settings.
