Smith Fittings, located in Dubai, UAE, stands out as a top manufacturer and supplier of **Stainless Steel 304 Circles**. These circles are celebrated for their remarkable corrosion resistance, impressive strength, and versatility. Crafted from austenitic stainless steel, they provide exceptional protection against oxidation, chemical damage, and general corrosion in a variety of settings. At Smith Fittings, precision manufacturing meets rigorous quality control, ensuring that their 304 circles adhere to international standards. Perfect for industrial, chemical, and architectural uses, these circles promise durability, structural integrity, and reliability, making them ideal for fabrication, high-precision engineering, and demanding operational needs across various industries.
**Stainless Steel 304 Circles** are composed of chromium (18–20%) and nickel (8–10.5%), which boost their corrosion resistance, ductility, and mechanical strength. They boast a tensile strength of around 515 MPa, a yield strength of 205 MPa, and an elongation of 40%. With a density of 8.0 g/cm³ and a melting range of 1400–1450°C, these circles deliver excellent toughness, formability, and weldability, ensuring reliable performance in structural, industrial, and mildly corrosive environments.
| Specifications | ASTM A240, ASME SA240 |
| Dimensions | ASTM, ASME and API |
| Standard | JIS, AISI, ASTM, GB, DIN, EN, etc. |
| Thickness | 1 Mm To 100 mm. |
| Diameter | Upto 2000 Mm. |
| Circle Diameter | 3″ DIA up to 38″ DIA 1500 lbs max. |

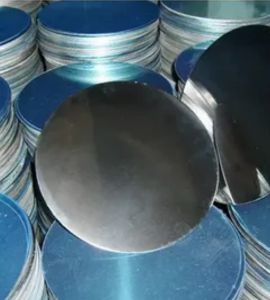

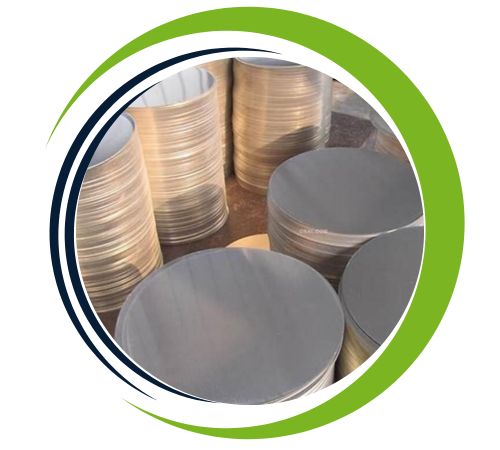

| Circles Form | Hot Rolled Circles, Cold Rolled Circle, Proof Machined Circles. |
| Grade | C | Mn | Si | P | S | Cr | Ni |
| SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | 8 – 11 |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 304 | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 304 | 1.4301 | S30400 | SUS 304 | 304S31 | 08Х18Н10 | Z7CN18‐09 | X5CrNi18-10 |
| Diameter (mm) | Thickness (mm) | Weight (kg) |
|---|---|---|
| 100 | 1.0 | 0.62 |
| 100 | 2.0 | 1.24 |
| 150 | 1.0 | 1.40 |
| 150 | 2.0 | 2.80 |
| 200 | 1.0 | 2.48 |
| 200 | 2.0 | 4.96 |
| 250 | 1.0 | 3.88 |
| 250 | 2.0 | 7.76 |
| 300 | 1.0 | 5.58 |
| 300 | 2.0 | 11.16 |
| 350 | 1.0 | 7.58 |
| 350 | 2.0 | 15.16 |
| 400 | 1.0 | 9.92 |
| 400 | 2.0 | 19.84 |
| 450 | 1.0 | 12.60 |
| 450 | 2.0 | 25.20 |
| 500 | 1.0 | 15.50 |
| 500 | 2.0 | 31.00 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
The stainless steel 304 circle has several advantages, making it very popular with industries. Its excellent corrosion resistance protects against corrosion and oxidation, providing durability even in harsh environments. The material’s high tensile strength and ductility allows it to withstand mechanical stresses without deformation. It performs well in extreme heat, keeping the structure consistent at both high and low temperatures. Its non-magnetic nature and smooth, polished design make it suitable for a variety of aesthetics and functions. Additionally, they are easy to manufacture, weld and wash, ensuring long-term cost-effectiveness and versatility.
**Stainless Steel 304 Circles** find their place in applications that demand corrosion resistance, high strength, and precise fabrication. They are perfect for kitchen equipment, food processing machinery, chemical processing units, pressure vessels, and industrial frameworks. Moreover, they are utilized in architectural structures, automotive components, and high-performance engineering applications where durability, mechanical stability, and resistance to oxidizing environments are crucial. Their outstanding performance makes them suitable for a broad spectrum of industrial and structural applications.
