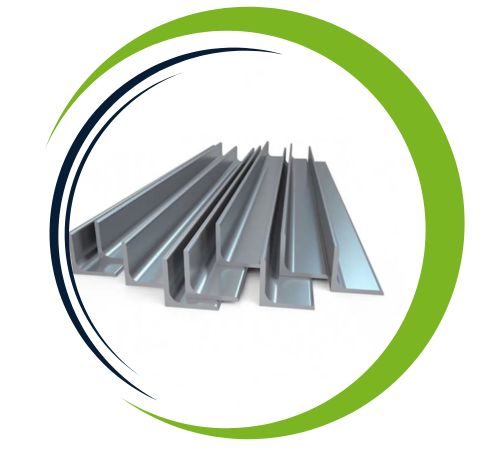

Smith Fittings, located in Dubai, UAE, has built a solid reputation as a reliable manufacturer and supplier of **Stainless Steel 304H Angles**. These angles are celebrated for their impressive high-temperature strength, resistance to corrosion, and overall durability. Crafted from austenitic stainless steel with a higher carbon content, they boast enhanced mechanical properties and creep resistance at elevated temperatures, all while keeping their corrosion-resistant qualities intact. At Smith Fittings, precision manufacturing and strict quality control are top priorities, ensuring that their 304H angles meet international standards. Perfect for use in industrial, chemical, and power generation settings, these angles promise long-lasting structural integrity, dependable performance, and resistance to scaling and oxidation, even in the toughest operational conditions.
**Stainless Steel 304H Angles** are composed of chromium (18–20%) and nickel (8–10.5%), with an increased carbon content that boosts their high-temperature strength and creep resistance. They have a tensile strength of around 515 MPa, a yield strength of 205 MPa, and an elongation of 40%. With a density of 8.0 g/cm³ and a melting range of 1400–1450°C, these angles maintain excellent toughness, weldability, and formability, ensuring they perform reliably under high temperatures and corrosive environments.
| Specifications | ASTM A/ASME SA213/A249/A269/A312/A358 CL. I to V ASTM A789/A790 |
|---|---|
| Dimensions | ASTM, ASME and API |
| 304 Pipes & Tubes | 1/2″ NB – 16″ NB |
| ERW 304 Pipes & Tubes | 1/2″ NB – 24″ NB |
| EFW 304 Pipes & Tubes | 6″ NB – 100″ NB |
| Size | 1/8″NB TO 30″NB IN |
| Specialized in | Large Diameter Size |
| Schedule | SCH5, SCH10, SCH20, SCH30, SCH40, Std, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Type | Seamless / ERW / Welded / Fabricated / LSAW Pipes |
| Form | Round, Square, Rectangular, Hydraulic Etc |
| Length | Single Random, Double Random & Cut Lengtd. |
| End | Plain End, Beveled End, Treaded |
| C | MN | SI | P | S | CR | NI | N | |
|---|---|---|---|---|---|---|---|---|
| 304 | 0.07max | 2.0max | 0.75max | 0.045max | 0.03max | min: 18.0 max: 20.0 | min: 8.0 max: 10.5 | — |
| 304H | min: 18.0 max:20.0 | min: 8.0 max: 10.5 | min: 0.04 max:0.10 | 0.75 max | 2.0 max | 0.045 max | 0.03 max | 0.10 max |
| Grade | Tensile Strength ksi (min) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
|---|---|---|---|---|---|
| 304 | 75 | 30 | 40 | 201 | 92 |
| 304H | 75 | 30 | 40 | 201 | 92 |
| STANDARD | WERKSTOFF NR. | UNS |
| SS 304H | 1.4948 | S30409 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Al Shakru Sheets and Plates based in Dubai, UAE, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
The Stainless Steel 304H Angle offers several advantages, including excellent corrosion resistance, especially in high-temperature environments, making it suitable for applications such as boilers, pressure vessels and more It has excellent weldability and formability, which allows for easy fabrication. The high carbon content of the 304H provides high strength and stability, especially at elevated temperatures. It also provides excellent resistance to oxidation and scaling. This compound is very versatile and can be used in the chemical, petrochemical and food processing industries. Its long-term performance and low cost make it popular in construction applications.
| SS 304 | ||||||
|---|---|---|---|---|---|---|
| Density lbm/in3 | Thermal Conductivity (BTU/h ft. °F) | Electrical Resistivity (in x 10-6) | Modulus of Elasticity (psi x 106 | Coefficient of Thermal Expansion (in/in)/ °F x 10-6 | Specific Heat (BTU/lb/ °F) | Melting Range (°F) |
| at 68°F: 0.285 | 9.4 at 212°F | 28.3 at 68°F | 28 | 9.4 at 32 – 212°F | 0.1200 at 68°F to 212°F | 2500 to 2590 |
| 12.4 at 932 °F | 39.4 at 752°F | 10.2 at 32 – 1000°F | ||||
| 49.6 at 1652 °F | 10.4 at 32 – 1500°F | |||||
| SS 304H | ||||||
| Denstiy lbm/in3 | Coefficient of Thermal Expansion (min/in)-°F | Thermal Conductivity BTU/hr-ft-°F | Specific Heat BTU/lbm -°F | Modules of Elasticity (annealed)2-psi | ||
| at 68 °F | at 68 – 212°F | at 68 – 1600°F | at 212°F | at 932°F | at 32 – 212°F | in tension (E) |
| 0.285 | 9.2 | 11.0 | 9.4 | 12.4 | 0.12 | 29 x 106 |
**Stainless Steel 304H Angles** find their place in various applications that demand high-temperature durability, corrosion resistance, and structural strength. They are particularly well-suited for furnace components, heat exchangers, boilers, chimneys, and chemical processing equipment. Moreover, they are utilized in power generation, petrochemical, and industrial frameworks where thermal stability, structural integrity, and oxidation resistance are crucial. Their outstanding performance in extreme heat and corrosive settings makes them ideal for industrial, structural, and high-performance engineering applications.
