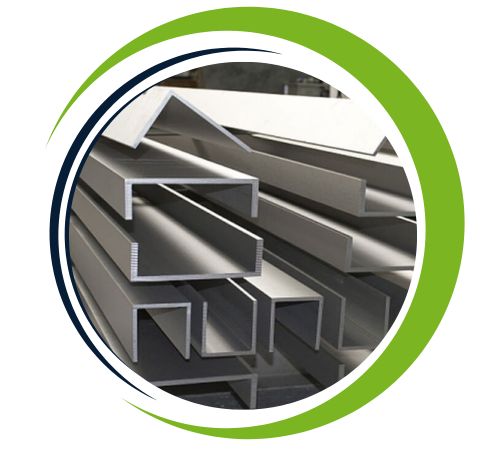

Al Shakru Sheets and Plates, based in Dubai, UAE, distinguishes itself as a leading manufacturer and supplier of Stainless Steel 304H Channels . These channels are renowned for their exceptional high-temperature strength, corrosion resistance, and overall durability. Made from austenitic stainless steel with an elevated carbon content, they deliver improved creep strength and mechanical stability at high temperatures, while maintaining outstanding corrosion resistance. At Al Shakru Sheets and Plates, precise manufacturing and strict quality control are top priorities, ensuring that their 304H channels comply with international standards. Ideal for industrial, chemical, and power generation uses, these channels guarantee enduring structural integrity, reliable performance, and resistance to scaling and oxidation, even under the most demanding operating conditions.
Stainless Steel 304H Channels consist of chromium (18–20%) and nickel (8–10.5%), featuring a higher carbon level that enhances their strength at elevated temperatures and resistance to creep. They offer a tensile strength of about 515 MPa, a yield strength of 205 MPa, and an elongation of 40%. With a density of 8.0 g/cm³ and a melting range of 1400–1450°C, these channels retain remarkable toughness, weldability, and formability, delivering dependable performance in high-temperature and corrosive settings.
| Standard | ASTM A276, ASTM A479 / ASME SA276, ASME SA479 |
| Condition | HRAP |
| Size Range | Base: 80 to 150 mm Side: 40 to 75 mm |
| Thickness | 5 to 6 mm (depending on size) |
| Grades | 304, 316 |
| Processing | Bar cutting |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni |
|---|---|---|---|---|---|---|---|---|
| SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 |
| SS 304L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 13 |
| SS 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 |
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 1.0 max | 16.00 – 18.00 | 16.00 – 18.00 | 10.00 – 14.00 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
We supply products accompanied by both mill test certificates and third-party test certificates, guaranteeing the highest standards of quality and compliance.
Al Shakru Sheets and Plates, located in Dubai, UAE, is a top supplier and stockist of premium metal products, such as Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all provided with outstanding service and customized to fulfill our customers specific needs. With an emphasis on delivering high-grade products, we serve a broad spectrum of industries, offering dependable solutions for varied applications. Our vast inventory includes Recognized for our distinctive finishing methods and dedication to quality. We are committed to guaranteeing customer satisfaction through reliable service and first-rate products.
Stainless Steel 304H Channelsprovide outstanding strength and resistance to elevated temperatures, making them well-suited for use in high-temperature settings, such as power plants and chemical processing. The increased carbon content enhances its creep strength and capacity to endure stress at high temperatures. It also delivers excellent corrosion resistance, especially against oxidation and chemical exposure. Stainless Steel 304H is highly durable, easy to weld, and maintain, which makes it cost-effective for long-term use in industries such as construction, food processing, and marine applications.
Yes,we offer custom sizes for Stainless Steel 304H Channel to suit particular project requirements. Our team at Al Shakru Sheets and Plates is committed to delivering customized solutions for all your needs. For further information, reach out to us at sales@alshakruplates.ae.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| SS 304 | 1.4301 | S30400 | SUS 304 | 304S31 | 08Х18Н10 | Z7CN18‐09 | X5CrNi18-10 |
| SS 304L | 1.4306 / 1.4307 | S30403 | SUS 304L | – | 03Х18Н11 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
| Description | Process | G kg/m | h mm | b mm | tw mm | tf mm | r1 mm | r2 mm |
|---|---|---|---|---|---|---|---|---|
| C 50X25X5X6 | Hot Rolled | 3.95 | 50 | 25 | 5 | 6 | 6 | 3 |
| C 75X40X5X7 | Hot Rolled/Laser | 6.95 | 75 | 40 | 5 | 7 | 8 | 4 |
| C 100X50X5X7.5 | Hot Rolled/Laser | 9.37 | 100 | 50 | 5 | 7.5 | 8 | 4 |
| C 125X65X6X8 | Hot Rolled/Laser | 13.4 | 125 | 65 | 6 | 8 | 8 | 4 |
| C 150X75X6.5X10 | Hot Rolled/Laser | 18.62 | 150 | 75 | 6.5 | 10 | 10 | 5 |
| C 150X75X9X12.5 | Hot Rolled/Laser | 24.01 | 150 | 75 | 9 | 12.5 | 5 | 1 |
| C 180X75X7X10.5 | Hot Rolled/Laser | 21.52 | 180 | 75 | 7 | 10 | 2 | 1 |
| C 200X80X7.5X11 | Hot Rolled/Laser | 24.77 | 200 | 80 | 7.5 | 11 | 2 | 1 |
| C 200X90X8X13.5 | Hot Rolled/Laser | 30.53 | 200 | 90 | 8 | 13.5 | 2 | 1 |
| C 230X80X8X12 | Hot Rolled/Laser | 28.56 | 230 | 80 | 8 | 12 | 2 | 1 |
| C 250X90X9X13 | Hot Rolled/Laser | 34.86 | 250 | 90 | 9 | 13 | 2 | 1 |
| C 250X90X11X14.5 | Hot Rolled/Laser | 40.34 | 250 | 90 | 11 | 14.5 | 2 | 1 |
| C 300X90X9X12 | Hot Rolled/Laser | 37.17 | 300 | 90 | 9 | 12 | 2 | 1 |
| C 300X90X10X15.5 | Hot Rolled/Laser | 43.85 | 300 | 90 | 10 | 15.5 | 2 | 1 |
| C 300X90X12X16 | Hot Rolled/Laser | 48.78 | 300 | 90 | 12 | 16 | 2 | 1 |
| C 380X100X10.5X16 | Hot Rolled/Laser | 54.85 | 380 | 100 | 10.5 | 16 | 2 | 1 |
| C 380X100X13X16.5 | Hot Rolled/Laser | 62.5 | 380 | 100 | 13 | 16.5 | 2 | 1 |
| C 380X100X13X20 | Hot Rolled/Laser | 67.37 | 380 | 100 | 13 | 20 | 2 | 1 |
Stainless Steel 304H Channels are used across a range of applications requiring high-temperature durability, corrosion resistance, and structural reliability. They are especially well-suited for furnace components, heat exchangers, boilers, chimneys, and chemical processing equipment. In addition, they serve in power generation, petrochemical, and industrial frameworks where thermal stability, structural integrity, and oxidation resistance play a vital role. Thanks to their exceptional performance under extreme heat and corrosive conditions, they are perfectly suited for industrial, structural, and high-performance engineering projects.
