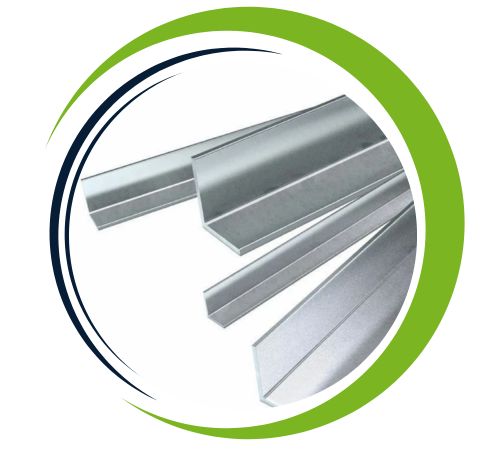

Situated in Dubai, UAE, Al Shakru Sheets and Plates distinguishes itself as a leading manufacturer and supplier of premium stainless steel products, especially their Stainless Steel 316H Angles. Recognized for their precise engineering and outstanding durability, these angles are built to offer superb corrosion resistance, high-temperature strength, and enduring performance. Manufactured to meet rigorous industrial standards, Stainless Steel 316H Angles are ideal for structural, industrial, and commercial applications where dependability and thermal stability are crucial. Thanks to their precise dimensions and robust mechanical properties, these angles ensure reliable performance even under demanding conditions. Al Shakru Sheets and Plates is dedicated to providing first-rate stainless steel solutions that serve a broad spectrum of engineering and construction requirements.
The composition of Stainless Steel 316H Angle consists mainly of iron, combined with 16–18% chromium, 10–14% nickel, 2–3% molybdenum, and low carbon levels, together with minor quantities of manganese and silicon. This distinctive mixture enhances resistance to pitting and crevice corrosion while guaranteeing outstanding strength under high-temperature conditions. Generally, these angles display a tensile strength in the range of 515–700 MPa, yield strength from 205–310 MPa, and an elongation of 35–45%, all of which support their dependable mechanical performance. Stainless Steel 316H Angles retain their form and structural soundness even after prolonged exposure to high temperatures, which makes them well-suited for industrial, chemical, and marine engineering uses.
| Specifications | ASTM A 276/A 276M,A 484/A 484M,A 564/A 564M,A 582/A582M,A 638 /A 638M,A705/A705M |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 316H Angle | 5mm to 9mm |
| Thickness | 3.0mm – 120mm |
| Length | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam, Chain |
| Grade | SS 316H |
|---|---|
| C | 0.015 max |
| Mn | 2 max |
| Si | 1.0 max |
| P | 0.045 max |
| S | 0.030 max |
| Cr | 16 – 18 |
| Mo | 2 – 3 |
| Ni | 11 – 14 |
| Fe | 67.845 min |
| Grade | SS 316H |
|---|---|
| Density | 8.0 g/cm3 |
| Melting Point | 1400 °C (2550 °F) |
| Tensile Strength | Psi – 75000 , MPa – 515 |
| Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 35% |
| STANDARD | SS 316H |
| WERKSTOFF NR. | 1.4401 / 1.4436 |
| UNS | S31600 |
| JIS | SUS 316 |
| BS | 316S31 / 316S33 |
| GOST | – |
| AFNOR | Z7CND17-11-02 |
| EN | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
We supply products accompanied by both mill test certificates and third-party test certificates, guaranteeing the highest standards of quality and compliance.
Al Shakru Sheets and Plates, located in Dubai, UAE, is a top supplier and stockist of premium metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all provided with outstanding service and customized to fulfill our customers specific needs. With an emphasis on supplying superior products, we serve a broad spectrum of industries, offering dependable solutions for varied applications. Our vast inventory features Recognized for our distinctive finishing methods and dedication to quality. We are committed to guaranteeing customer satisfaction through reliable service and first-rate products.
The stainless steel 316H angle delivers outstanding resistance to corrosion, particularly in high-temperature settings, which makes it well-suited for chemical, petrochemical and marine uses It offers high strength thanks to its elevated carbon content, allowing it to perform well under increased pressures and temperatures. The material withstands pitting, crevice corrosion and oxidation, ensuring longevity and durability. Stainless steel 316H Angle also preserves its mechanical properties under high temperatures, making it appropriate for uses that demand high temperature resistance, like electric motors and heat exchangers Simple to fabricate and weld.
| THICKNESS | ||||||
| Size(mm) | 3 mm | 4 mm | 5 mm | 6 mm | 8 mm | 10 mm |
| 25×25 | 1.13 | 1.47 | 1.80 | 2.11 | 2.69 | — |
| 30×30 | 1.37 | 1.79 | 2.20 | 2.59 | 3.33 | — |
| 32×32 | 1.46 | 1.92 | 2.20 | 2.59 | 3.33 | — |
| 35×35 | 1.61 | 2.11 | 2.60 | 3.07 | 3.97 | — |
| 38×38 | 1.75 | 2.30 | 2.84 | 3.36 | 4.35 | — |
| 40×40 | 1.85 | 2.43 | 3.00 | 3.55 | 4.61 | — |
| 45×45 | — | 2.75 | 3.40 | 4.03 | 5.25 | — |
| 50×50 | — | — | 3.80 | 4.51 | 5.89 | 7.20 |
| 60×60 | — | — | 4.60 | 5.47 | 7.17 | 8.80 |
| 63×63 | — | — | 4.84 | 5.76 | 7.55 | 9.28 |
| 65×65 | — | — | 5.00 | 5.95 | 7.81 | 9.60 |
| 70×70 | — | — | — | 6.43 | 8.45 | 10.40 |
| 75×75 | — | — | — | 6.91 | 9.09 | 11.20 |
| 80×80 | — | — | — | 7.39 | 9.73 | 12.00 |
| 90×90 | — | — | — | 8.35 | 11.01 | 13.60 |
| 100×100 | — | — | — | 9.31 | 12.29 | 15.20 |
These angles find broad application across industries requiring superior corrosion resistance, strength, and heat tolerance. They appear in structural frameworks, pressure vessels, heat exchangers, chemical processing equipment, and marine components. Because they resist high-temperature oxidation and corrosion, they work well for furnace parts, exhaust systems, and industrial machinery running in demanding conditions.
