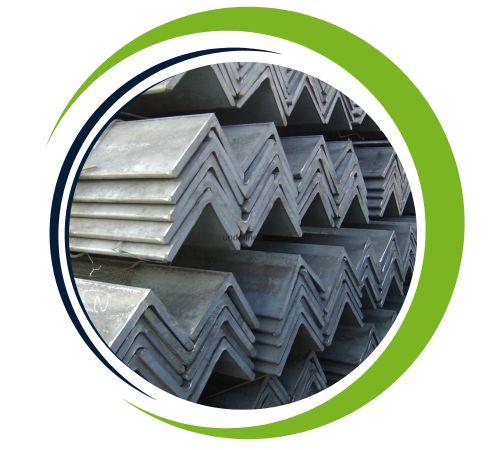

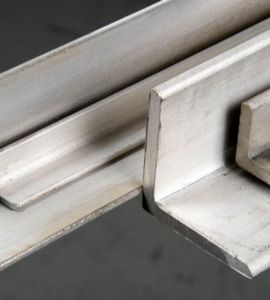

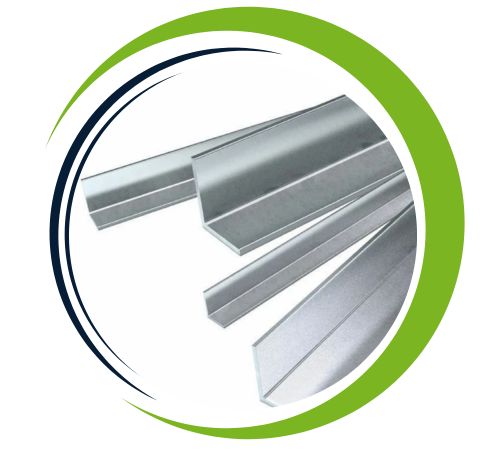

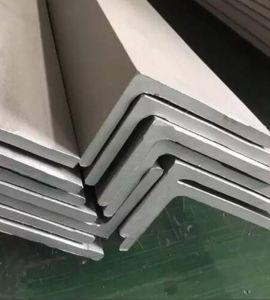

Smith Fittings, a top-notch manufacturer and supplier located in Dubai, UAE, proudly offers high-quality **Stainless Steel 316L Angles** that are celebrated for their outstanding corrosion resistance, strength, and durability, even in the toughest environments. Crafted with cutting-edge technology and premium raw materials, these angles boast precise dimensions, a smooth surface finish, and long-lasting reliability. Smith Fittings guarantees that their Stainless Steel 316L Angles adhere to international quality standards, making them perfect for a variety of applications in industrial, chemical, marine, and food processing sectors. With low carbon content and exceptional resistance to pitting, crevice, and general corrosion, they are the go-to choice for structural and fabrication projects.
**Stainless Steel 316L Angle** is an austenitic stainless steel primarily made up of chromium (16–18%), nickel (10–14%), and molybdenum (2–3%), which significantly boosts corrosion resistance in harsh chemical and marine settings. The “L” designation signifies low carbon content, which helps reduce carbide precipitation during welding. These angles showcase a tensile strength of around 485–515 MPa, along with excellent ductility, toughness, and high resistance to pitting and crevice corrosion. They remain stable under thermal and mechanical stress, making them ideal for structural and industrial applications that demand long-term reliability.
Specifications : ASTM A276, ASTM A479 / ASME SA276, ASME SA479
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Al Shakru Sheets and Plates based in Dubai, UAE, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
The stainless steel 316L angle offers many advantages, including exceptional corrosion resistance, especially in chloride zones, making it ideal for marine and chemical applications Its low carbon content enhances its weldability and reduces risk of carbide precipitation. This material is very durable and maintains strength and performance at high temperatures. Stainless steel 316L is also non-magnetic and offers excellent formability, ensuring versatility in construction and construction applications. It is easy to maintain, offers long-term reliability and low maintenance costs, making it desirable for many businesses.
| THICKNESS | ||||||
|---|---|---|---|---|---|---|
| Size(mm) | 3 mm | 4 mm | 5 mm | 6 mm | 8 mm | 10 mm |
| 25×25 | 1.13 | 1.47 | 1.80 | 2.11 | 2.69 | — |
| 30×30 | 1.37 | 1.79 | 2.20 | 2.59 | 3.33 | — |
| 32×32 | 1.46 | 1.92 | 2.20 | 2.59 | 3.33 | — |
| 35×35 | 1.61 | 2.11 | 2.60 | 3.07 | 3.97 | — |
| 38×38 | 1.75 | 2.30 | 2.84 | 3.36 | 4.35 | — |
| 40×40 | 1.85 | 2.43 | 3.00 | 3.55 | 4.61 | — |
| 45×45 | — | 2.75 | 3.40 | 4.03 | 5.25 | — |
| 50×50 | — | — | 3.80 | 4.51 | 5.89 | 7.20 |
| 60×60 | — | — | 4.60 | 5.47 | 7.17 | 8.80 |
| 63×63 | — | — | 4.84 | 5.76 | 7.55 | 9.28 |
| 65×65 | — | — | 5.00 | 5.95 | 7.81 | 9.60 |
| 70×70 | — | — | — | 6.43 | 8.45 | 10.40 |
| 75×75 | — | — | — | 6.91 | 9.09 | 11.20 |
| 80×80 | — | — | — | 7.39 | 9.73 | 12.00 |
| 90×90 | — | — | — | 8.35 | 11.01 | 13.60 |
| 100×100 | — | — | — | 9.31 | 12.29 | 15.20 |
**Stainless Steel 316L Angles** find extensive use in the chemical processing, petrochemical, marine, pharmaceutical, and food processing industries. They are perfect for structural supports, frameworks, piping supports, pressure vessel components, and heat exchanger supports that are exposed to corrosive environments. Additionally, they are utilized in marine equipment, architectural structures, and industrial fabrication projects where durability, corrosion resistance, and mechanical strength are crucial. Their blend of toughness, performance, and ability to withstand harsh conditions ensures they provide reliable service in demanding industrial, structural, and commercial applications.
