Copper Sheet and Plate

Al Shakru Sheets and Plates is a dependable manufacturer and supplier of Copper Sheets and Plates based in Dubai, UAE . We take great pride in delivering premium copper products celebrated for their exceptional electrical and thermal conductivity, along with their corrosion resistance and remarkable durability. Our Copper Sheets and Plates are made with precision, employing modern production techniques and rigorous quality control practices to ensure uniform thickness, a smooth surface finish, and reliable performance. These products are ideal for numerous applications across electrical, industrial, and architectural sectors, combining strength with malleability for straightforward fabrication and installation. Al Shakru Sheets and Plates serves industries including electronics, construction, automotive, and marine, supplying copper solutions that meet international standards while guaranteeing long-lasting efficiency, reliability, and performance.

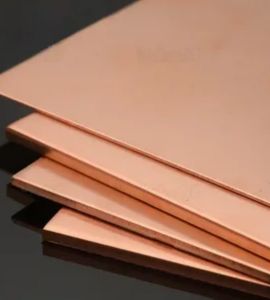

Copper 2B Plate

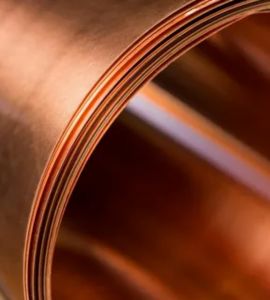

Copper Rolling Sheets

Copper Flat Sheet

Copper 2B Sheet Manufacturer in Abu Dhabi, Decorative 8K Mirror Copper Sheet Al Ain, Hairline Copper Sheet Supplier in Dubai, Copper Plate Exporter in Jebel Ali, Copper Sheet Price List in UAE, Copper Clad Plate Distributor in Al Ain, Copper Rolling Sheets Supplier in Abu Dhabi, Copper Shim Sheets Distributor in UAE, Copper Flat Sheet Sizes in mm

Our Copper Sheets and Plates are crafted from high-purity copper (99.9% Cu) , with a small amount of trace elements included to improve their mechanical properties. They deliver remarkable tensile strength (210–250 MPa) , ductility , corrosion resistance , and outstanding electrical and thermal conductivity . These qualities make our Copper Sheets and Plates perfect for applications requiring durability, accurate fabrication, and dependable conductivity, while remaining easy to form, bend, and machine.

Copper Sheet and Plate Specification

ASTM Specification	ASTM B152 UNS C12200, ASME SB152, MSRR, AMS, BS
Specification	MSRR, AMS, BS, ASTM B152 / ASME SB152
ASTM Standard Designations for C10200 OFHC Copper plate and sheet	ASTM B152 C10100 meets ASTM F68 specification.
Length & Sizes	1000 mm x 2000 mm, 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2m, 2.44m, 3m, 36″ X 120″ or 48″ X 144″, Cut to size available
Thickness	0.1mm to 100 mm Thk
Sheet Width	36” widths – .032”, .0625”, .125”
Plate Width	10-2500mm
AMS	AMS
Hardness	Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Temper	Annealed, 1/4-Hard, 1/2-Hard, 3/4-Hard, Full Hard, Hard as Rolled, Spring
Condition	Polished on both sides
Finish	Bare/Standard, Hot Tin Dipped, Tin Plated, Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Stock in form of	C101 Copper Plate, Sheet, Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Clad Plate, Rolling Sheet, Flat Sheet, Rolling Plate, Flat Shim, Blank (Circle), hot rolled, cold rolled, annealed, soft annealed, descaled, sheared, tread plate, Checker Plate
Gauges	.0005″ to .010″ .0005″, .0007″, .001″, .0014″, .002″, .003″, .004″, .005″, .006″, .008″, .010″
Proof Stress	50 to 340 MPa
Tensile Strength	200 to 360 MPa
Hardness	40 to 110 HV
Elongation	50-5 %
Density	8.92 g/cm³
Melting Point	1083 °C
Thermal Expansion	16.9 x10^-6 /K
Modulus of Elasticity	117 GPa
Thermal Conductivity	391.1 W/m.K
Electrical Resistivity	0.0203 x10^-6 Ω .m
Machinability	Average
Workability – Cold	Excellent
Weldability – Gas	Good
Weldability – Arc	Not recommended
Weldability – Resistance	Not recommended
Brazeability	Excellent
Copper profiling	To provide a full profiling service we use numerous profiling methods including: Plasma Plate Cutting Laser Plate Cutting Oxy-propane Flame Cutting

Copper Rolling Plate Distributor in UAE, Copper Flat Shim Sheet Supplier in Dubai, Copper Perforated Sheet Weight Chart, Copper Polished Plate Exporter in Jebel Ali, Copper Nickel Sheets Manufacturer in Abu Dhabi, Copper Shim Sheet and Plate Price List in UAE, Copper Cold Rolled Sheet Sizes in mm, Copper Hot Rolled Plate Distributor in Al Ain, Copper Sheets and Plates Ajman

If You Are Looking To Buy High Quality Piping Products ?

We supply materials accompanied by mill test certificates as well as third-party test certificates, guaranteeing the highest levels of quality and compliance.

Largest Copper Sheet and Plate Manufacturer and Exporter in Dubai, UAE

Al Shakru Sheets and Plates, located in Dubai, UAE, is a top supplier and stockist of premium metal products, such as Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all provided with outstanding service and customized to fulfill our customers specific needs. With an emphasis on supplying superior products, we serve a broad array of industries, offering dependable solutions for varied applications. Our vast inventory features Recognized for our distinctive finishing methods and dedication to quality. We are committed to guaranteeing customer satisfaction through reliable service and first-rate products.

Copper Sheet & Plate Weight and Size Chart

THICKNESS	4’X 2′	2M X 1M	2500MM X 12500MM
Size	Weight per sheet in Kg
0.35	2.37
0.4	2.68	7.14
0.45	2.99	8.04
0.5	3.3	8.93
0.55	3.61	9.8
0.6	3.92	10.72
0.7	4.64	12.5
0.8	5.3	14.29
0.9	6.0	16.07
1.0	6.6	17.86
1.2	7.9	21.43	34
1.4	9.3
1.6	10.6	28.56	45
2.0	13.3	35.72	56
2.5	16.5	44.65	70
3.0	19.9	53.58	84
3.25	21.6	58.05	91
4.0	26.5	71.44	112
4.76	32.3	85.0	133
5.0	33.1	89.3	140
6.0	39.8	107.16	168
6.35	42.2	113.4	177
8.0	54		224
9.525	64		266
10.0			279
12.0		215	335
12.7		227
15.8		283
16.0		268
19.0		340
20.0		358
22.0		393
25.0		447
30.0		536
40.0		715
45.0		804
50.0		893
75.0		1340
100.0		1787
150.0		2680

Copper Quarto Plate Dealer in Abu Dhabi, Copper Perforated Plate Supplier in Abu Dhabi, Copper Sheet and Plates in Al Ain, Copper Plates Size Chart, Copper Sheets Price in Ajman, Oxygen-free copper Plate Supplier in UAE, Arsenical Copper Sheet Stockist in Jebel Ali, Copper Quarto Plate Exporter in UAE, Copper Rolling Sheets Stockist in Dubai, Copper Flat Sheet Supplier in Jebel Ali

Copper sheets and platesoffer numerous benefits such as outstanding electrical and thermal conductivity, which makes them well-suited for electrical and heat transfer uses. They are extremely resistant to corrosion, guaranteeing durability and a longer lifespan in tough environments, and they possess great formability, which makes them simpler to assemble and produce. Copper’s ductility permits stronger materials, whereas its non-magnetic characteristics improve the efficiency of electrical systems. The material also demonstrates high fatigue resistance, delivering long-lasting performance. Furthermore, lead is recyclable, which makes it eco-friendly. These qualities render copper sheets and plates useful in sectors like electronics, manufacturing and construction.

Types of Copper Sheet and Plate

Copper Flat Shim Sheets Price in Ajman, Copper Hot Rolled Plates Weight Chart, Copper Sheet and Plates Supplier in UAE, Stockist of Copper Cold Rolled Sheets in Jebel Ali, Copper Perforated Sheet Supplier in UAE, Copper Sheet Price List in Dubai, Copper Clad Plate Supplier in Jebel Ali, Copper Rolling Plate Exporter in Abu Dhabi, Copper Polished Plate Exporter in UAE, Copper Quarto Plate Exporter in Al Ain, Copper Sheet and Plate in Ajman

Are Custom Sizes Available for Copper Sheet and Plate?

Yes,we provide bespoke dimensions for Copper Sheet and Plate to suit particular project requirements. The team at Al Shakru Sheets and Plates is committed to delivering customized solutions for everything you need. To learn more, reach out to us at sales@alshakruplates.ae.

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Application Industry of Copper Sheet and Plate

You’ll commonly encounter Copper Sheets and Plates in electrical busbars, transformers, switchboards, and power distribution systems , owing to their outstanding conductivity and dependability. Within industrial and mechanical settings , they act as vital parts for machinery, heat exchangers, plumbing, and HVAC systems , where toughness and corrosion resistance matter greatly. Additionally, these sheets and plates find use in architectural features, marine equipment, and electronics , delivering long-lasting performance, minimal maintenance, and high efficiency. Their distinctive blend of mechanical strength, workability, and conductivity makes Copper Sheets and Plates a superb pick for a broad spectrum of applications.
