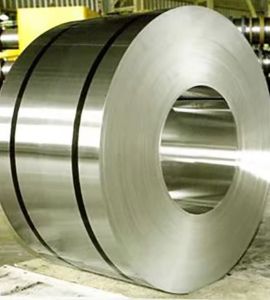

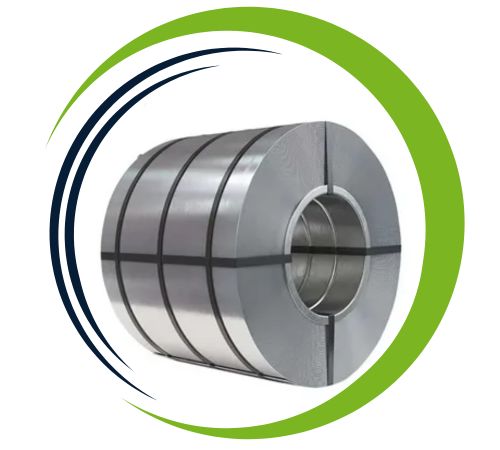

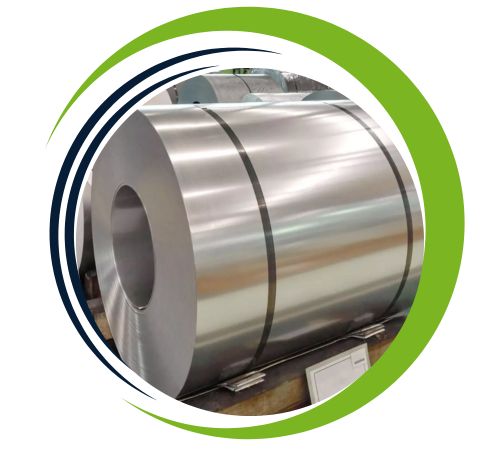

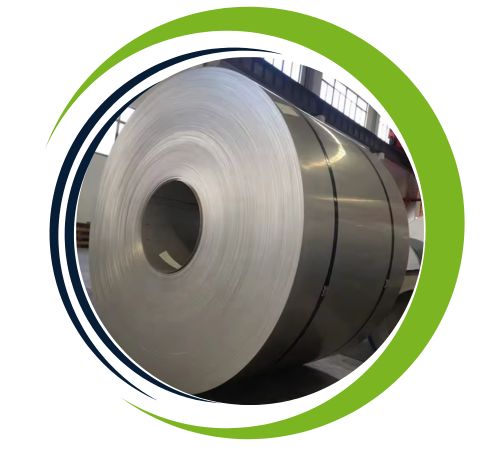

Smith Fittings stands out as a top-notch manufacturer and supplier of **Duplex Steel S31803 Coils and Slitting Coils** right from **Dubai, UAE**. We take pride in offering high-quality duplex stainless steel products that are celebrated for their remarkable corrosion resistance, strength, and durability. Our Duplex Steel S31803 Coils and Slitting Coils are crafted with precision, utilizing cutting-edge production techniques and rigorous quality control to guarantee consistent thickness, a smooth surface finish, and dependable performance. These coils are perfect for a variety of applications in the chemical, marine, and industrial sectors, providing outstanding resistance to stress corrosion cracking and pitting. Smith Fittings caters to industries such as oil and gas, chemical processing, marine engineering, and industrial manufacturing, delivering top-tier duplex steel solutions.
The **Duplex Steel S31803 Coils and Slitting Coils** boast a well-balanced **austenitic (≈50%) and ferritic (≈50%) stainless steel microstructure**, enriched with **chromium (≈22%), nickel (≈5–6%), molybdenum (≈3%), nitrogen, and trace elements**. They showcase impressive **tensile strength (≈650–800 MPa)**, **yield strength (≈450–550 MPa)**, excellent **ductility**, and exceptional **resistance to pitting, crevice corrosion, and stress corrosion cracking**, making them ideal for challenging industrial and marine settings.
| Specifications | ASTM A240 / ASME SA240 |
| Dimensions | ASTM, ASME, and API |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Thickness | 4mm-100mm |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Surface Finish | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, hairline, sand blast, Brush, etching, Hot rolled coil (HR), Cold rolled coil (CR), SATIN (Met with Plastic Coated) etc |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Form | Coils, Foils, Rolls, Plain Coil, Shim Coil, Strip |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| S31803 | 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 22.0 – 23.0 | 3.0 – 3.5 | 4.50 – 6.50 | 0.14 – 0.20 | 63.72 min |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| S31803 | 7.8 g/cm3 | 1350 °C (2460 °F) | Psi – 116000 , MPa – 800 | Psi – 80000 , MPa – 550 | 15 % |
| Grades | EN | UNS | ISO |
| S31803 | 1.4462 | S31803 | 4462-318-03-I |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Al Shakru Sheets and Plates based in Dubai, UAE, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Stocked Sizes | |
|---|---|
Size (in inches) | Size (in mm) |
.125″ | 3.18mm |
.134″ | 3.40mm |
.156″ | 3.96mm |
.187″ | 4.75mm |
.250″ | 6.35mm |
.312″ | 7.92mm |
.375″ | 9.53mm |
.500″ | 12.7mm |
.625″ | 15.9mm |
.750″ | 19.1mm |
.875″ | 22.2mm |
1″ | 25.4mm |
1.125″ | 28.6mm |
1.250″ | 31.8mm |
1.500″ | 38.1mm |
1.750″ | 44.5mm |
2″ | 50.8mm |
2.500″ | 63.5mm |
3″ | 76.2mm |
Duplex steel S31803 coil/slitting coils offer a unique combination of advantages, including high strength and good corrosion resistance, especially against pitting, crack corrosion and stress corrosion cracking Their dual phase design ensures good mechanical properties, e.g higher tensile and yield strengths compared to austenitic steels reduce them in good weldability and formability, and provide they are suitable for complex applications. Furthermore, their high fatigue and corrosion resistance makes them durable in harsh environments, such as chemical manufacturing, marine, and oil and gas industries, and allows them to use time long and reliable.
Yes, we offer custom sizes for Duplex Steel S31803 Coil/Slitting Coil to meet specific project needs. Our team at Al Shakru Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@alshakruplates.ae.
These **Duplex Steel S31803 Coils and Slitting Coils** find extensive use in **heat exchangers, chemical processing equipment, desalination plants, and offshore structures** thanks to their superior corrosion resistance and high strength-to-weight ratio. In **industrial and fabrication applications**, they are utilized for **precision-engineered components, gaskets, protective layers, and cladding**, where durability, reliability, and long-lasting performance are essential. Moreover, these coils are integral to **oil and gas, marine, and renewable energy projects**, ensuring operational efficiency, minimal maintenance, and a prolonged service life. Their unique blend of **mechanical strength, corrosion resistance, and durability** makes them a go-to choice for demanding applications.
